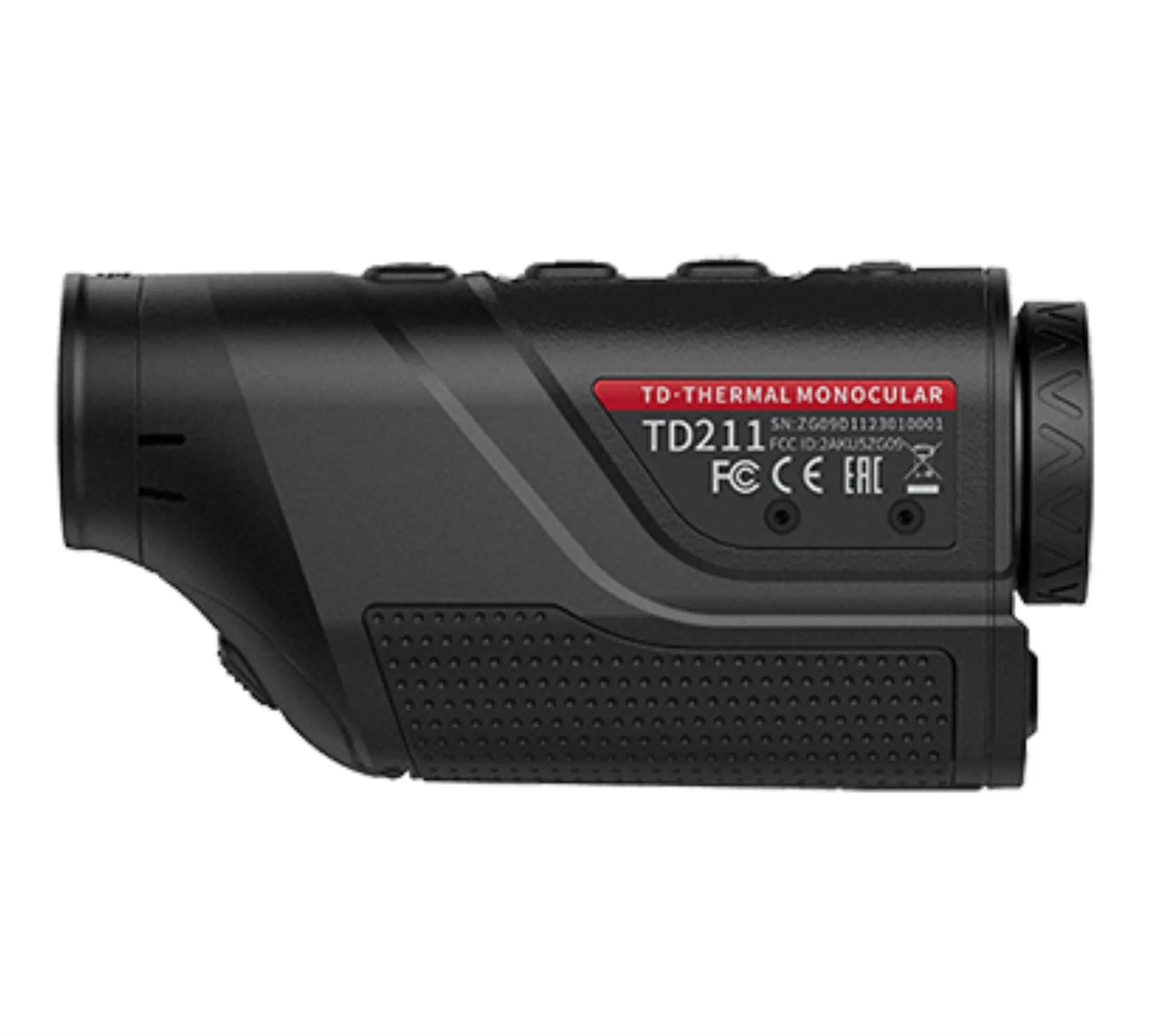

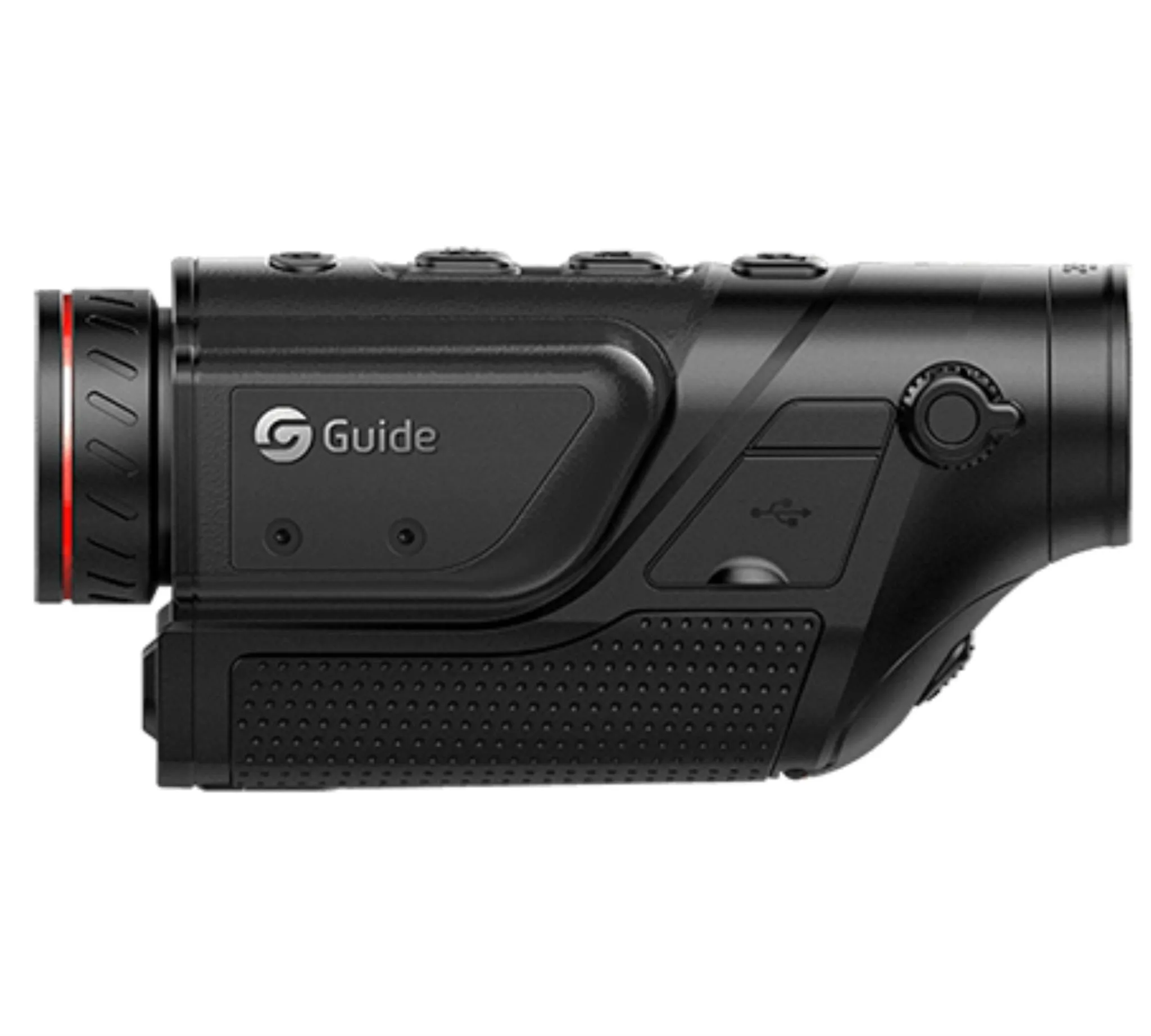

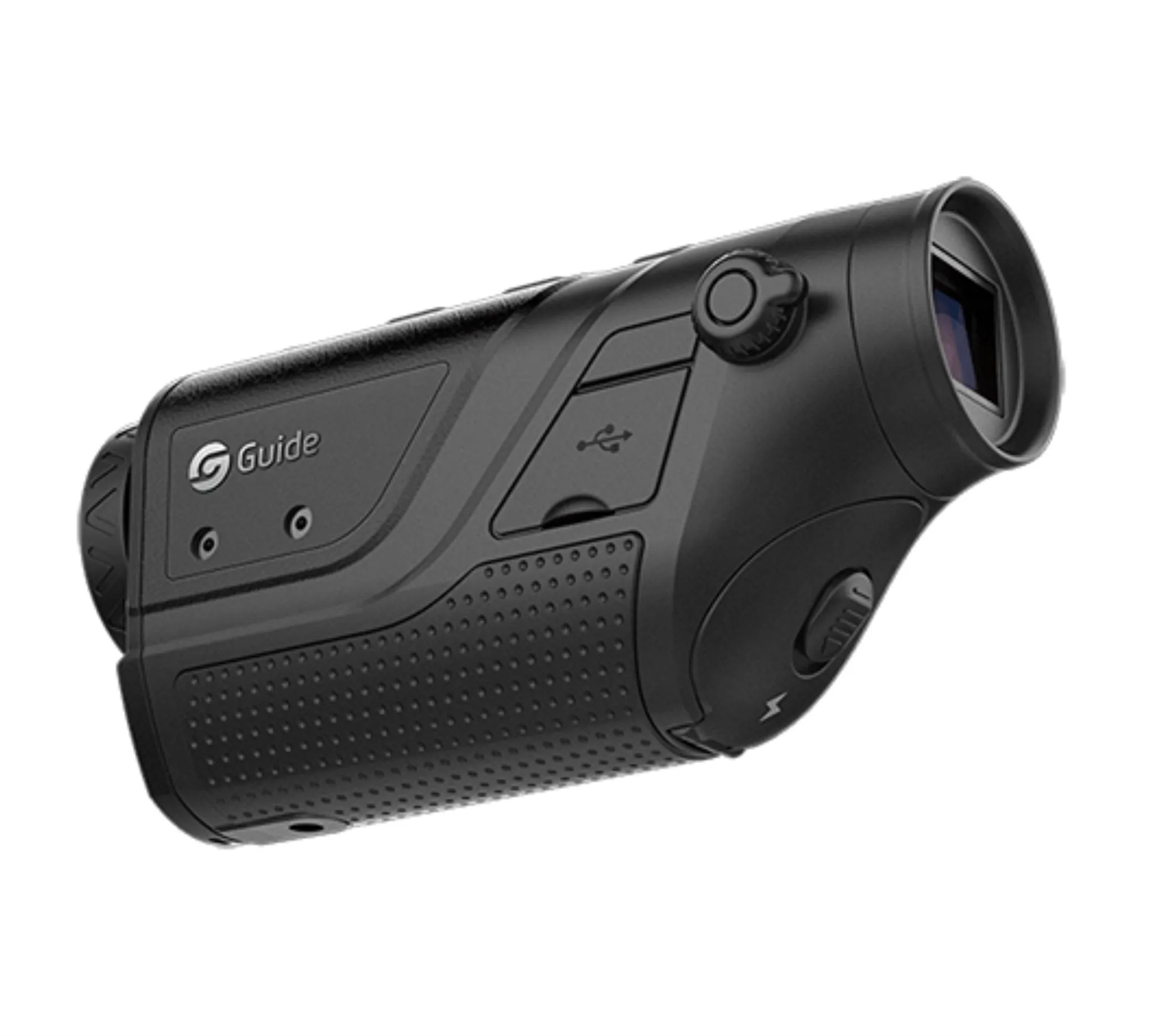

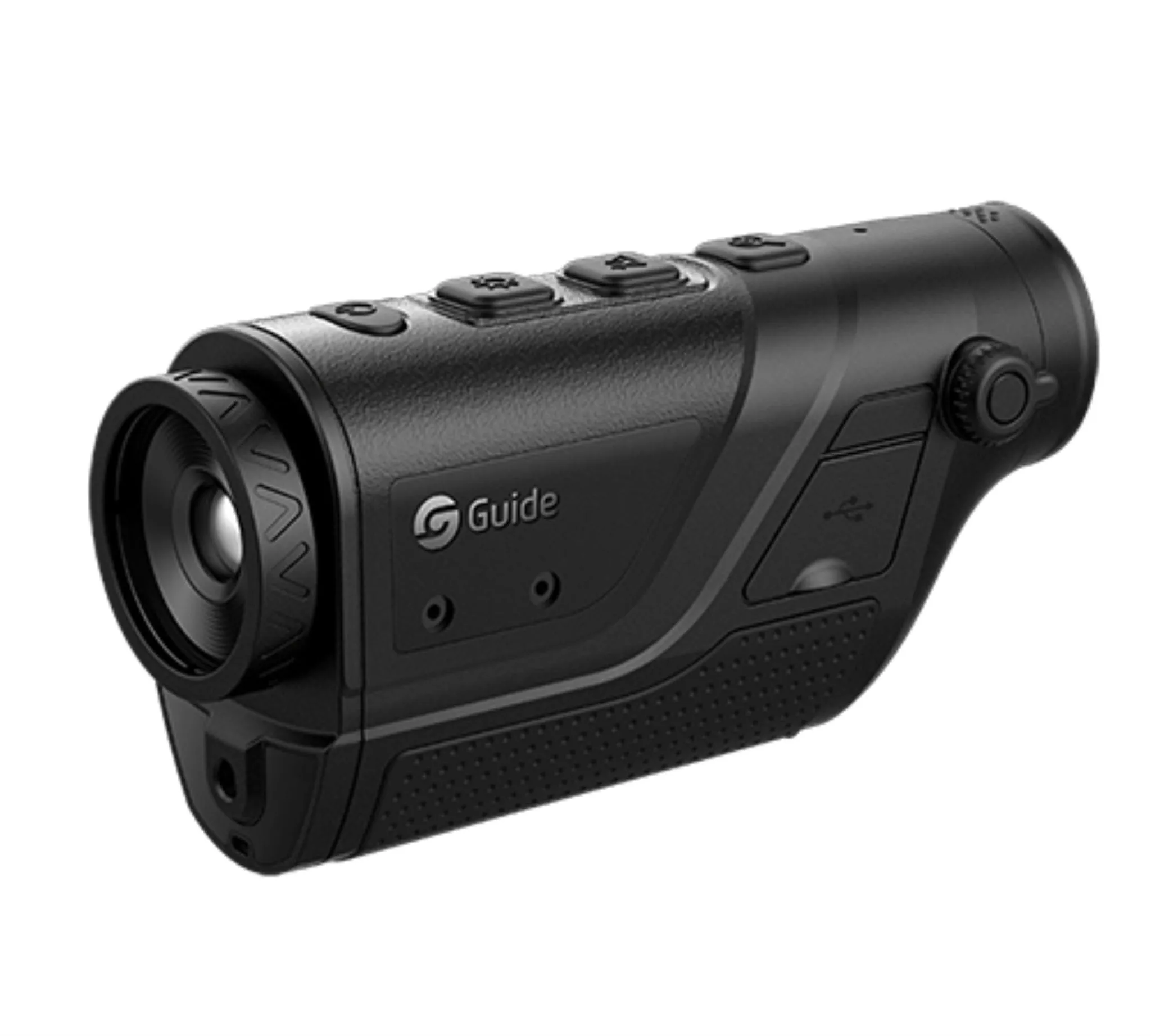

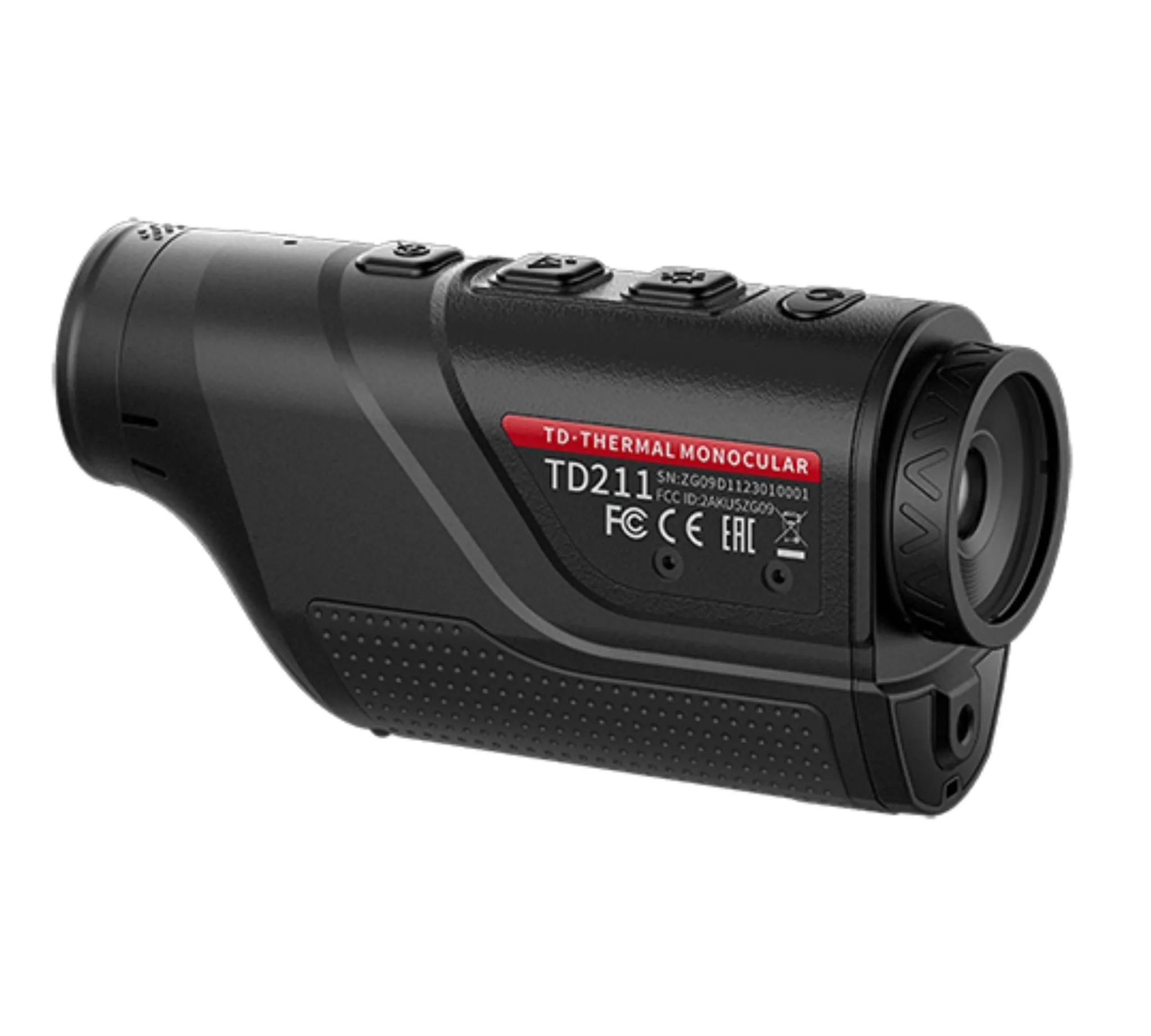

TD Gen2 Series follows the design of traditional optical equipment. It is lightweight, portable, and simple to operate for a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, the TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision
Features:
- Tiny and Powerful: A lightweight body, that can be controlled by one hand, is comfortable to hold and has no burden to carry and explore.
- 10 Hours Strong Battery Life: Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.
- New User Interface design: New user interface design to simplify operation; iconized operation without language restrictions.
- Real-time Sharing by WIFI: Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.
- OTA Upgrade: Support device firmware updates by connecting to TargetIR APP for high efficiency.
Sensor
- Type Uncooled VOx Infrared Detector, 8 to 14 μm
- Resolution 256×192, 12 μm
- NETD ≤50mK
- Frame rate 50Hz
Lens
- Focal length 10 mm, F1.0
- Field of view 17.5°×13.2°
- Optical zoom 0.7x
- Digital zoom 1x, 2x
- Focus Focus-free
Display
- Display type 0.23’’ AMOLED
- Resolution 640×400

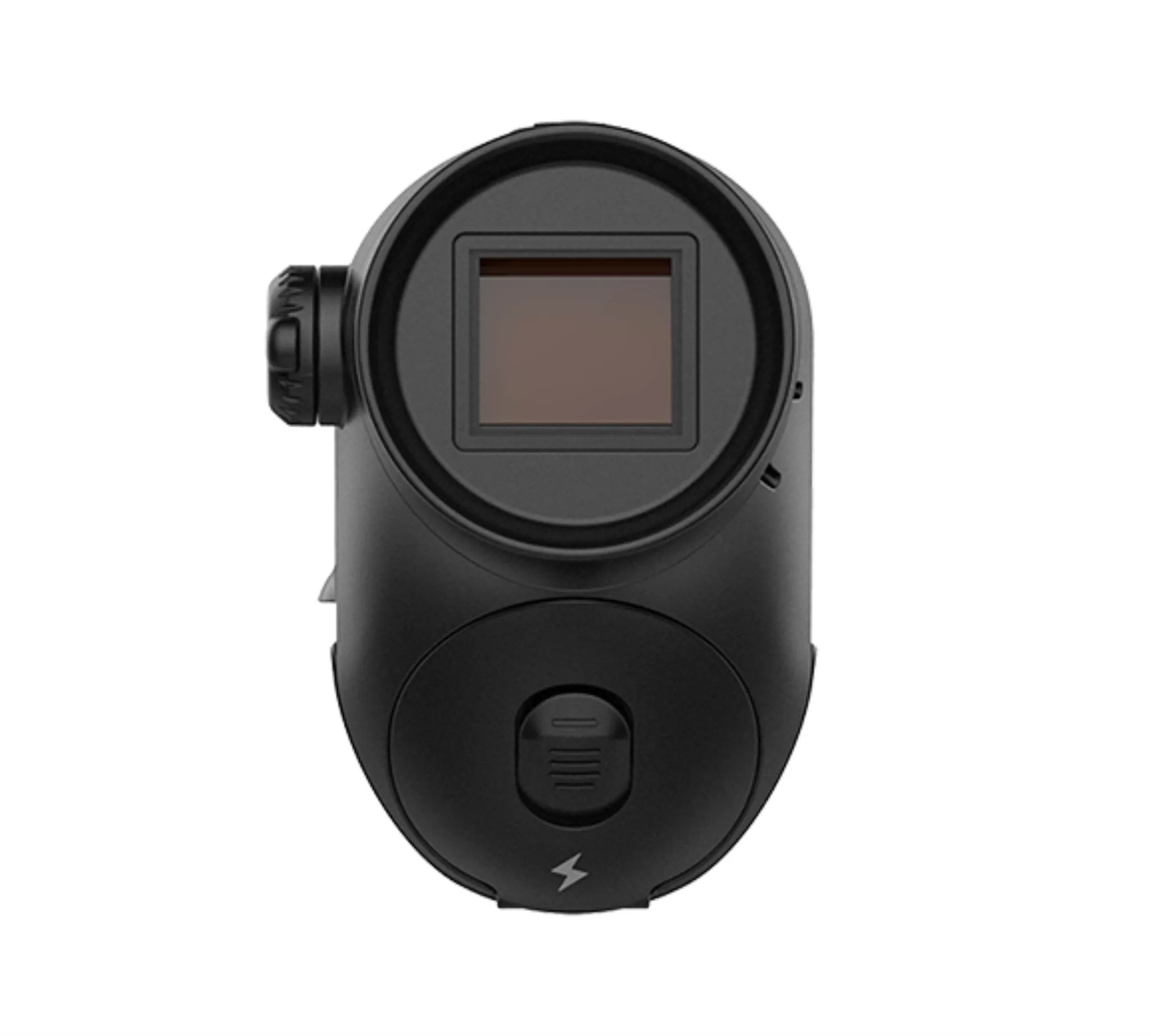

- Eyepiece Exit pupil distance≥12 mm; Diopter: -4 to 2; Zoom: 18x
- Video output Analog video
Range Performance
- Detection range 400 m
Hardware
- Others PIP, Hot spot tracking, Rough ranging (Available with APP)
Functions
- Scene modes Enhanced, Highlight and Natural

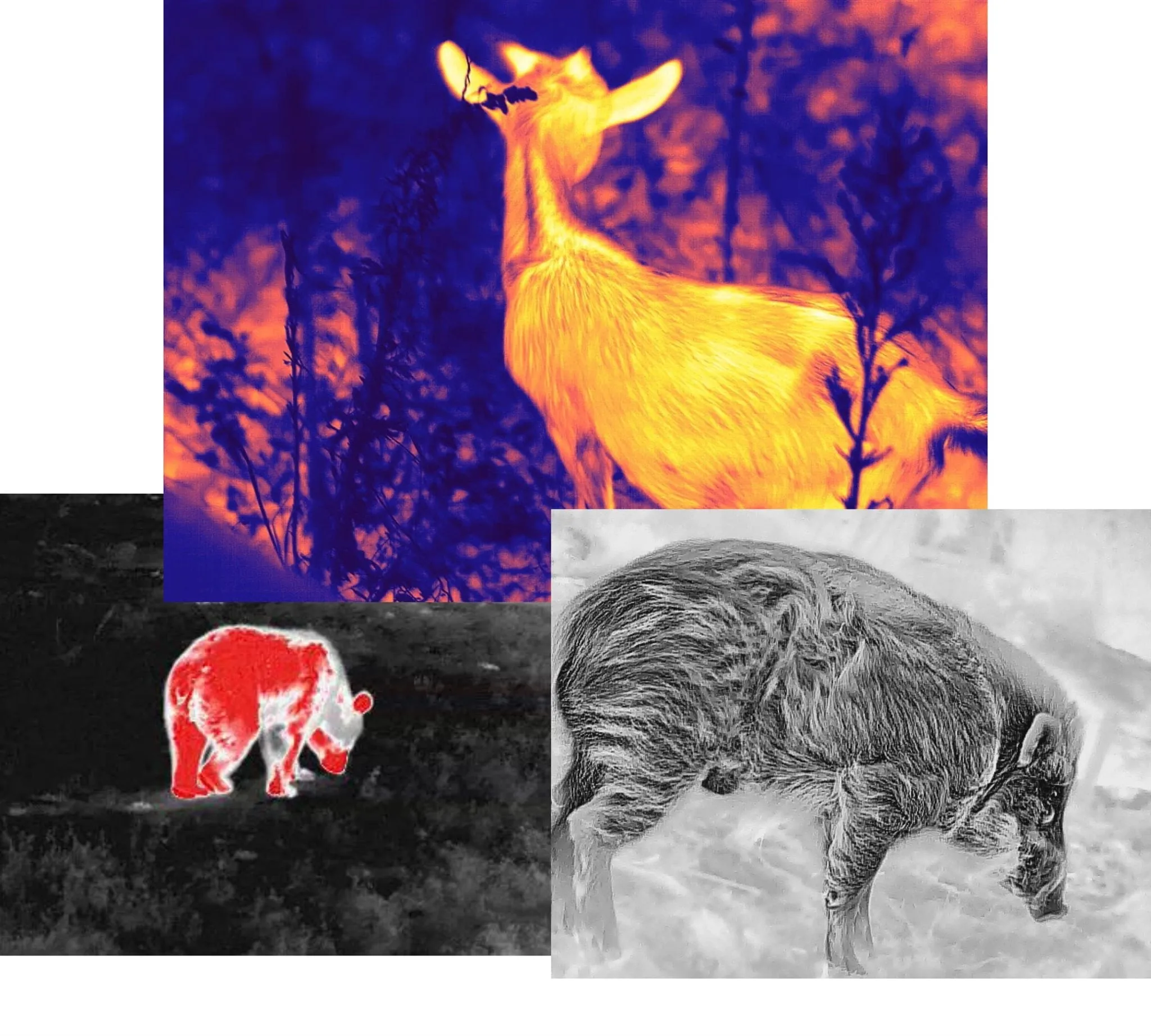

- Color palettes Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
- WIFI 2.4 G
- Supported Application TargetIR
- Firmware OTA Upgrade device firmware via app connection
- Power
- Battery type Single, replaceable 18650 battery
- Operating time ≥ 10 hours
Interface
- USB USB Type-C
- Mechanical interface UNC ¼"-20 (Tripod mounting), Mechanical expansion interface
Environmental
- Storage temperature -30 °C to 60 °C
- Humidity 10 % to 95 % non-condensing
- Shock 30 G at 11 ms half-sine pulse (as per IEC60068-2-27)
- Drop 1 m
- Encapsulation IP66
- Certification IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2
Physical
- Weight ≤280 g
- Size 140 × 45 x 74 mm
- Standard A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card
